29 Nov 2013 11:30 - 29 Nov 2013 14:19 #1 by THE BLACKBIRD
Where to point the aerial on 2.4 was created by THE BLACKBIRD
Talking to a man this morning in the model shop and he has flown in a lot of championships all over the world, and the subject of me loseing contact came up
He asked where do you point the aerial on the transmitter and what radio do i use, i told him Futaba now and JR before that and the aerial points up and a little to the side
His reply was ( that is where your trouble ls coming from, your aerial should point straight ahead and to the ground that way it transmits in an arc in front of you, having it pointing up it transmits over your shoulders and not at the aircraft
Having watched the jet world champs i had noticed the flyers were flying with the aerials down.
It makes sense i think so i will be flying with it pointing the same as my willy, but then it dont work to well :) :) :(
Last edit: 29 Nov 2013 14:19 by .

Please Log in or Create an account to join the conversation.

  • Dean M
  • Dean M's Avatar
  • Offline
  • Elite Member
  • Elite Member
  • Wind turbines. I'm a big fan.
More
29 Nov 2013 12:45 #2 by Dean M
Replied by Dean M on topic Where to point the aerial on 2.4

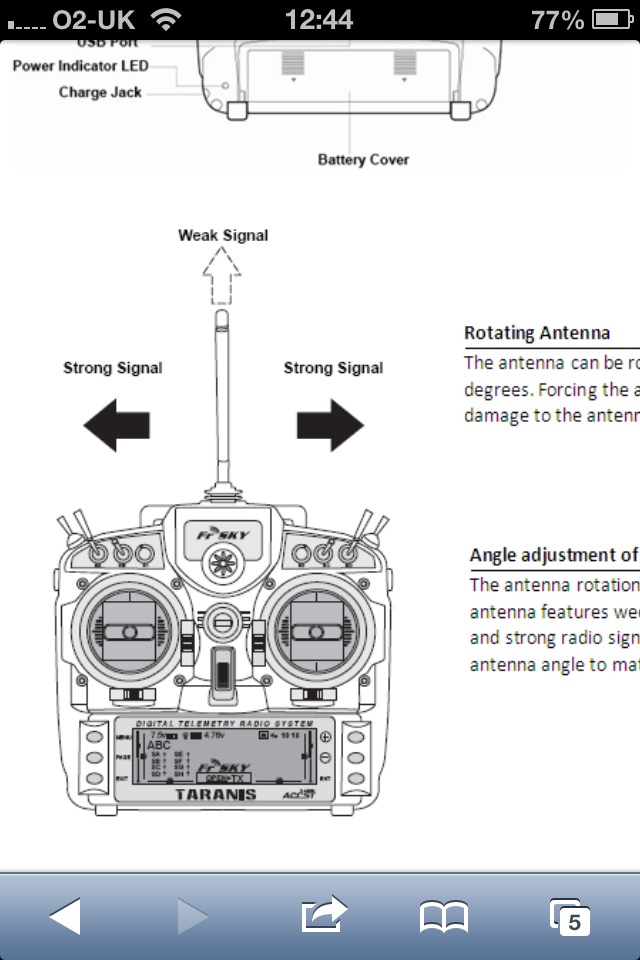

From what I understand the signal from the ariel is like a donut. All to the side and weak from the tip
