05 Nov 2019 17:23 #16 by Eric

Replied by Eric on topic TSR2

If we weren't - we wouldn't be doing this crazy hobby! :S

if you are calm and collected when all about you are going berserk - you've missed something important!

Thanks: Flytilbroke, crash happy

Please Log in or Create an account to join the conversation.

bond007mas
Topic Author
Offline
Elite Member

11 Nov 2019 11:08 #17 by bond007mas

Replied by bond007mas on topic TSR2

My fault, sorry Crash

Please Log in or Create an account to join the conversation.

crash happy
Offline
Platinum Member
Oops. did I say that out loud!

11 Nov 2019 15:12 #18 by crash happy

Replied by crash happy on topic TSR2

No need, made me chuckle. :lol:

Thanks: Flytilbroke

Please Log in or Create an account to join the conversation.

bond007mas
Topic Author
Offline
Elite Member

18 Nov 2019 10:17 #19 by bond007mas

Replied by bond007mas on topic TSR2

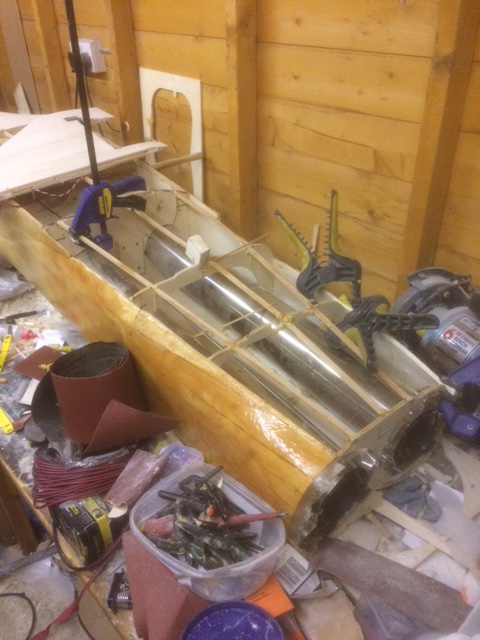

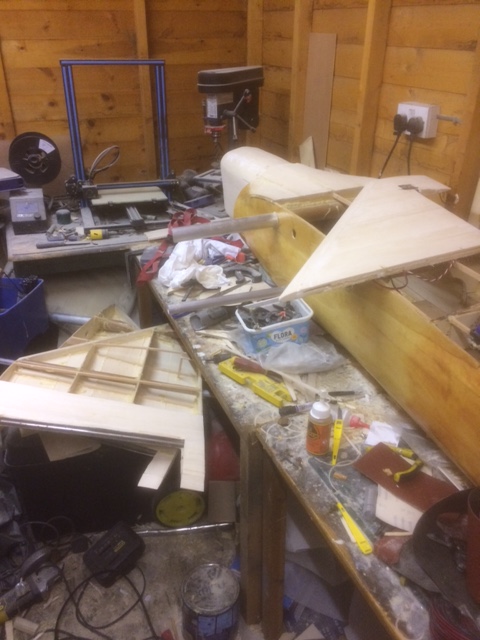

As you can see, the underside is laminated. Now i intend to fit the fin and aileron mounts, after they are done i can do electronics then seal the engine bay.
When fitting the fin i will use carbon fibre rods and balsa blocks, the fin will be fixed permanently so i have to get it right.
The way i fix it is i get the wing mounts either side and measure to the table, adjust and fix, that`s the fuz fixed, i then fix fin to roof of shed with plum bob and glue

Attachments:

Thanks: Klipkopwildlife, crash happy

Please Log in or Create an account to join the conversation.

bond007mas
Topic Author
Offline
Elite Member

18 Nov 2019 11:13 #20 by bond007mas

Replied by bond007mas on topic TSR2

Elevator, not aileron

Please Log in or Create an account to join the conversation.

bond007mas
Topic Author
Offline
Elite Member

18 Nov 2019 11:40 #21 by bond007mas

Replied by bond007mas on topic TSR2

I am doing something totally different on this build.
On all working surfaces the servo directly moves the surface. You have to use a very powerful servo. I've got 50kg torque Servox .
No horns or rods but all clean surfaces, just like the real thing
pics to follow

Thanks: crash happy

Please Log in or Create an account to join the conversation.

Eric
Offline
Moderator

18 Nov 2019 12:16 #22 by Eric

Replied by Eric on topic TSR2

If roll control on the TSR is the same as the Tornado - done by the tail feathers, not by surfaces on the main wing, they would be called elevons - a contraction of elevator and aileron.
-
Surfaces directly driven - no pushrods - the same method Quorneng uses on his ultra-lights.
You will need to have provision for fine trim adjustments, though!
